Configuration of the EXPORT Interface of the Humphrey Field Analyzer 2 (Model 7xx)

Basic configuration

The basic configuration is the setting of baud rate and other parameters of data transmission.

• System Setup
• Communications Setup

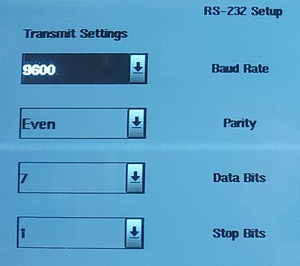

• RS-232 Setup

Automatic export configuration

The configuration for automatic export after finishing an exam has to be done only once.

• System Setup

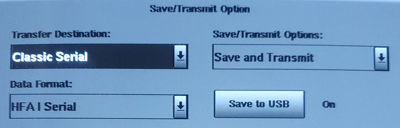

• Save/Transmit Options

The steps may be different depending of the HFA2 software version. Please read the perimeter manual

Make the connection: all steps
